PELIN Electromagnetic Valves

PELIN has been developing electromagnetic valves for fast gas emission since 1997.

A distinctive feature of the PELINТs valves is 1 ms interval of opening/closing time.

Gas release can be adjusted remotely from 3 to 1000 mbar*Litr per shot. Working pressure interval is 0-150 bar.

The valves can be used in high vacuum facilities (leak rate <10^-10 Pa m3/s).

Valves are equipped with power supplies produced by PELIN also.

Valves can be triggered remotely by PLC and operate in a single or repetitive mode up to 30Hz.

Inlet/outlet fittings can be fabricated in accordance with customer request (typically VCR connectors).

Technical parameters of Pelin's Fast Valves are presented in Table below:

PELIN's Fast Valves Parameters

Parameter	Value
The working substance of the Fast Valve	Air, He, H₂ and other non-aggressive gases
The purity of working substance	> 99.95%
Working pressure range	0.1-15 MPa
Pressure front rise rate (dP/dt)	~ 10⁴ MPa/s
Fast Valve opening time	~ 1ms
Fast Valve closing time	~ 1ms
Frequency	< 30 Hz
Gas consumption per one cycle	10-1000 mbar*Litr
Outlet hole diameter	1-5 mm
Environment - FV leak rate	10^-9 mbar *L / s
Fast Valve - vacuum system leak rate (through the valve seat)	10^-4 mbar *L / s
Power mains	220V AC, <50W
Error-free running period	50000 valve cycles

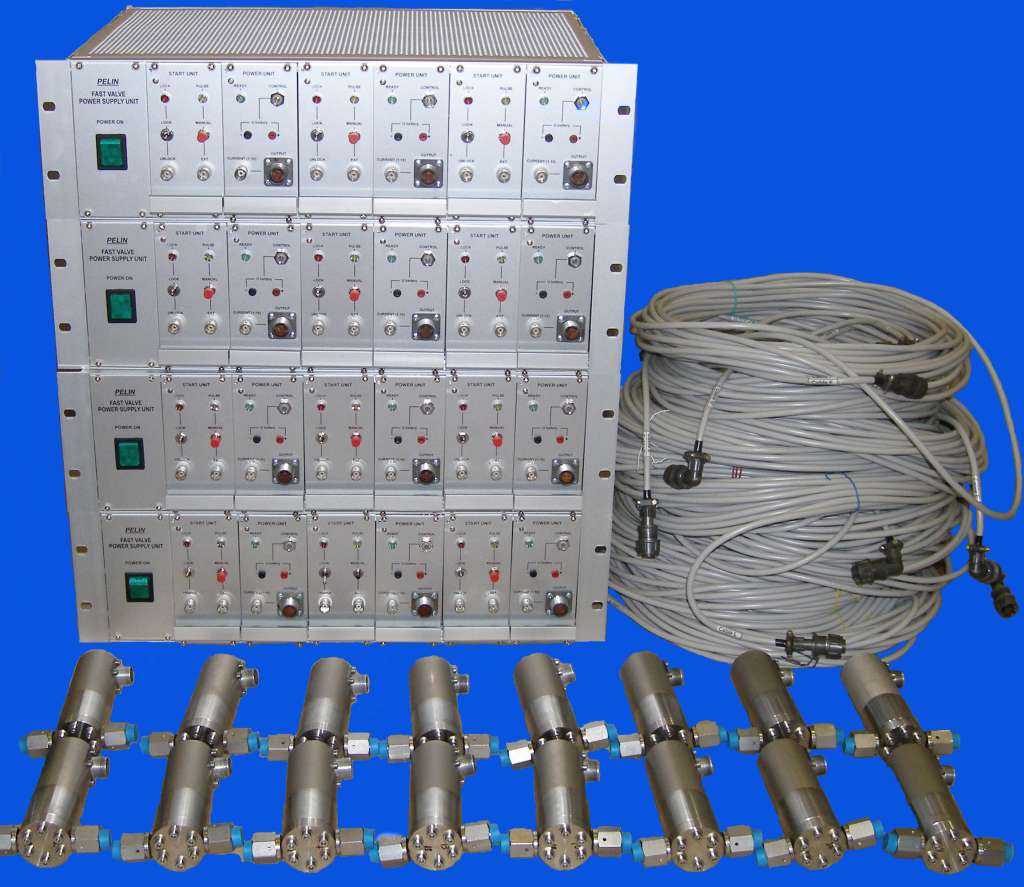

Fast valves with power supplies for 20-barrels pellet injector installed at LHD stellarator (Japan)

PELIN Electromagnetic Fast Gate Valves

A special vacuum gate valve can be developed by PELIN in accordance with customer request.

One of example is presented on photo below. It is a gate valve for TESPEL pellet injector installed at LHD stellarator in Japan.

The gate valve is opened just 1 s before a pellet injection through the valve duct of 5.5 mm diameter and it is closed within 6 ms after the shot.

The propellant gas is separated from the vacuum line connected to the stellarator.

The gate valve has open/close indicator for convenient operation.

Leak rate from environment into vacuum space is <10^-10 Pa m3/s.

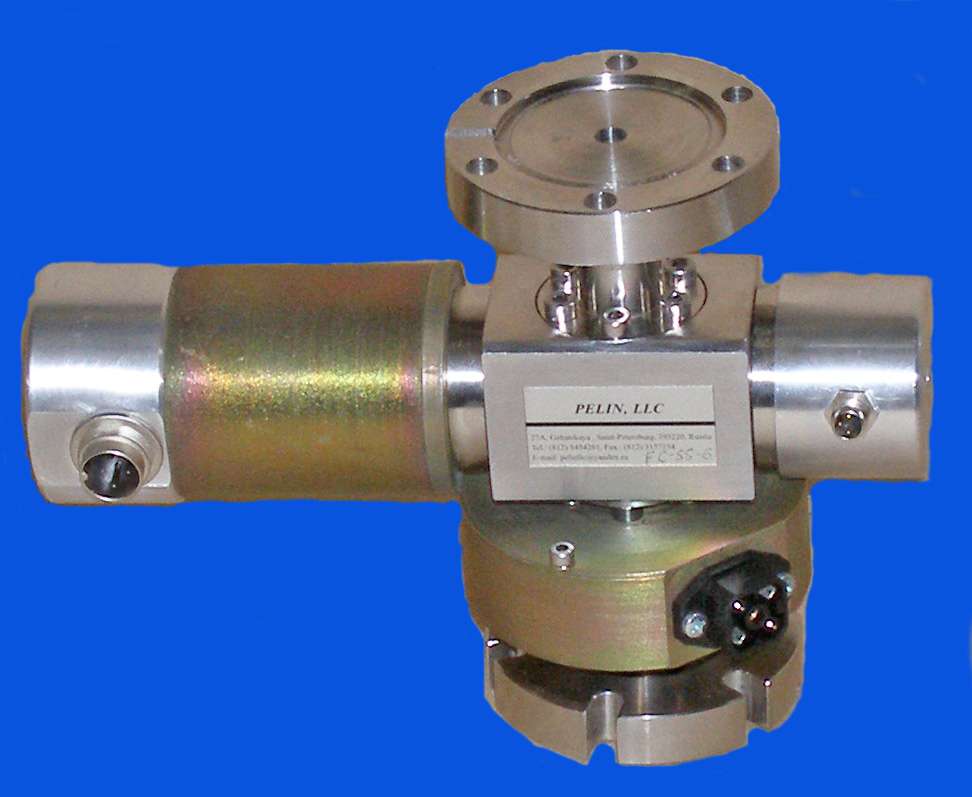

Fast gate valve for TESPEL pellet injector installed at LHD stellarator (Japan)
